Plot Spatial Data — splnr_plot • spatialplanr

This function provides a versatile way to plot spatial data (sf objects) within the spatialplanr package. It can visualize various data types, including binary presence/absence, logical values, continuous data, or simply the planning unit outlines.

Usage

splnr_plot(
  df,
  colNames = NULL,
  paletteName = "YlGnBu",
  colourVals = c("#c6dbef", "#3182bd"),
  plotTitle = "",
  legendTitle = NULL,
  legendLabels = NULL
)

splnr_plot(
  df,
  colNames = NULL,
  paletteName = "YlGnBu",
  colourVals = c("#c6dbef", "#3182bd"),
  plotTitle = "",
  legendTitle = NULL,
  legendLabels = NULL
)

Arguments

df: The input dataframe containing the data to be plotted. This must be an sf object and include a geometry column.
colNames: A character vector of column names from df to be used for coloring the plot. If NULL (default), only the Planning Unit outlines are plotted. If a single column is specified, it checks for binary, logical, or continuous data. If multiple columns are specified, it sums the values across these columns to create a "FeatureSum" for plotting.
paletteName: A character string specifying the name of the RColorBrewer palette to use for filling continuous data. Defaults to "YlGnBu".
colourVals: A character vector of two color values to use for binary (0/1) or logical (FALSE/TRUE) data. The first color is for '0' or 'FALSE' (absence), and the second is for '1' or 'TRUE' (presence). Defaults to c("#c6dbef", "#3182bd").
plotTitle: A character string for the subtitle of the plot. Defaults to "" (no subtitle).
legendTitle: A character string for the title of the legend. If NULL, a default title will be used based on the data type.
legendLabels: A character vector of strings to use for the legend labels, particularly useful for binary or logical data (e.g., c("Absent", "Present")). If NULL, default labels are used for binary/logical plots.

Value

A ggplot object representing the spatial plot.

Details

The splnr_plot function automatically detects the type of data specified by colNames (binary, logical, or continuous) and adjusts the plotting aesthetics accordingly. If multiple colNames are provided, it calculates the sum of features for each planning unit and plots this sum. If colNames is NULL, it will simply plot the outlines of the planning units.

This function is designed to be a flexible replacement for several plotting functions, such as splnr_plot_cost(), splnr_plot_binFeature(), splnr_plot_MPAs(), and splnr_plot_featureNo(), streamlining the plotting workflow within the package.

Written by Kilian Barreiro and Jason Everett. Last modified: February 2024.

The splnr_plot() function automatically detects the type of data specified by colNames (binary, logical, or continuous) and adjusts the plotting aesthetics accordingly. If multiple colNames are provided, it calculates the sum of features for each Planning Unit and plots this sum. If colNames is NULL, it will simply plot the outlines of the Planning Units.

Written by Kilian Barreiro and Jason Everett. Last modified: February 2024.

Examples

if (FALSE) { # \dontrun{
# Assuming 'dat_species_bin', 'dat_bathy', and 'dat_PUs' are existing sf objects
# in your package, suitable for plotting.

# Binary plot of species distribution for "Spp1"

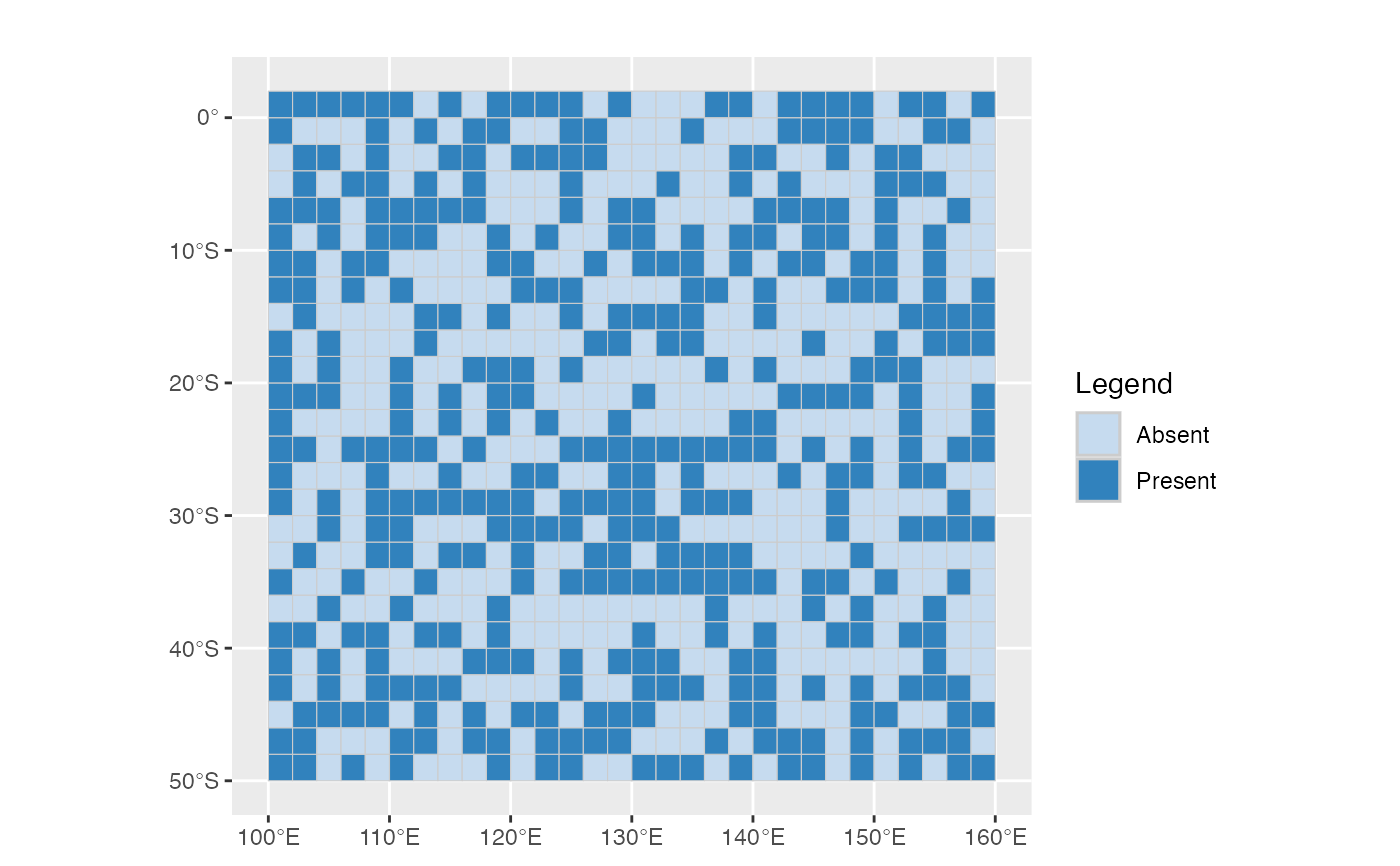

plot_spp1_binary <- splnr_plot(
  df = dat_species_bin,
  colNames = "Spp1",
  legendTitle = "Species Presence",
  legendLabels = c("Absent", "Present")
)
print(plot_spp1_binary)

# Logical plot of species distribution for "Spp1" (converted from binary)
plot_spp1_logical <- splnr_plot(
  df = dat_species_bin %>%
    dplyr::mutate(dplyr::across(
      tidyselect::starts_with("Spp"), as.logical
    )),
  colNames = "Spp1",
  legendTitle = "Species Presence",
  legendLabels = c("Absent", "Present")
)
print(plot_spp1_logical)

# Continuous plot of bathymetry

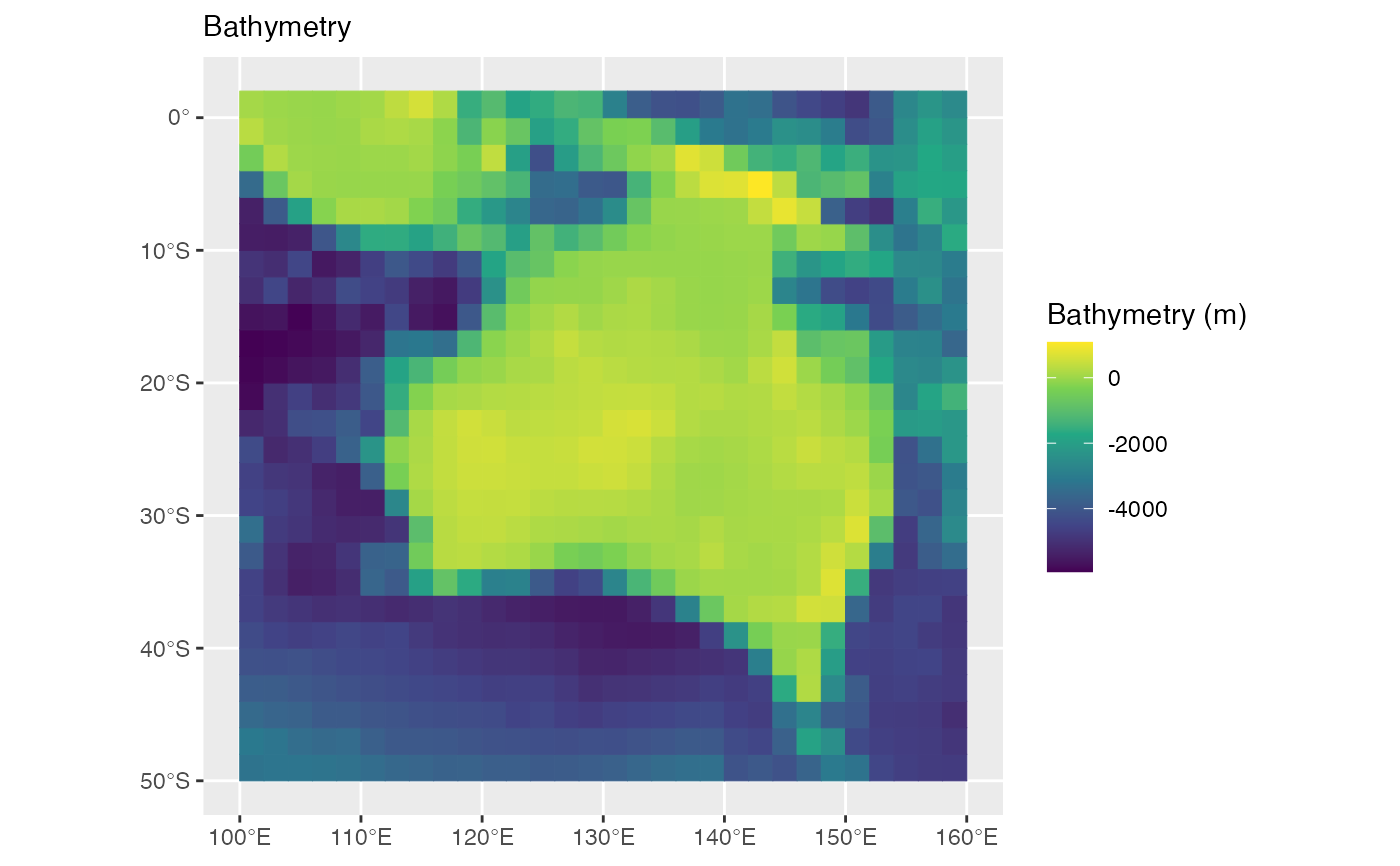

plot_bathymetry <- splnr_plot(
  df = dat_bathy,
  colNames = "bathymetry",
  plotTitle = "Bathymetry",
  legendTitle = "Bathymetry (m)"
)
print(plot_bathymetry)

# Plot Planning Units outlines only

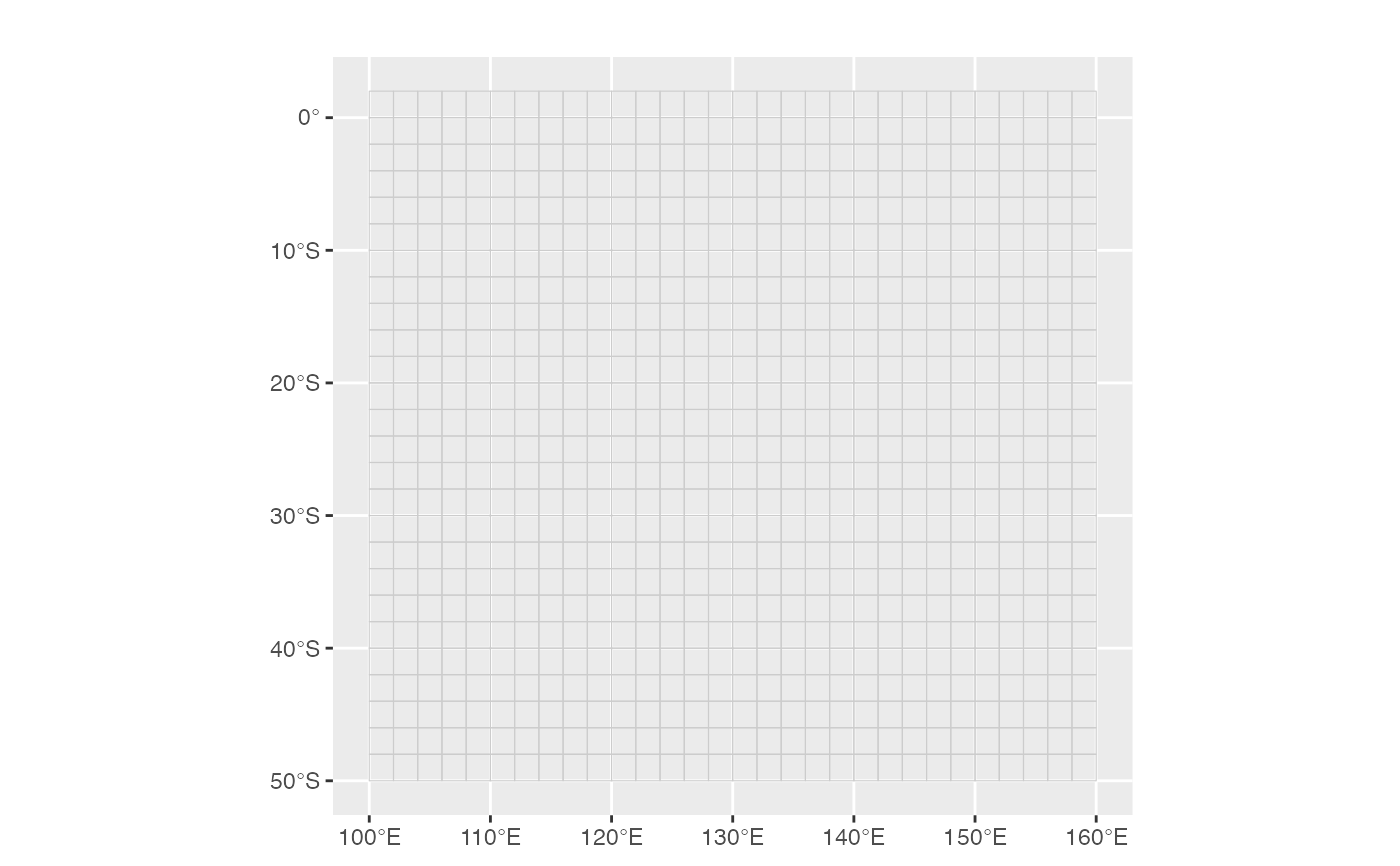

plot_planning_units <- splnr_plot(df = dat_PUs)
